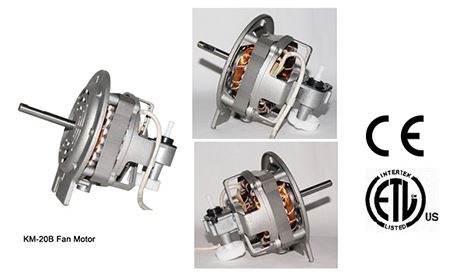

KM-20B Fan Motor (with Ball Bearing)

KM-20B Fan Motor (with Ball Bearing)
KM-20B Fan Motor (with Ball Bearing)
Product Description
Item No.KM-20B
(for Aluminum Blades)		KM-20B
(for Aluminum Blades)
Voltage 110V / 120V 220V / 240V
Frequency 60Hz 50Hz
Power 85W / 90W 140W / 165W
Pole 4 4
Speed Select 3 3
Steel Sheet Stack 110 x 65 mm 110 x 65 mm
Stacked 18 mm 18 mm
R.P.M (NO Load) 1720 1500
Insulation class B B
Capacitor 3UF/250V 2UF/400V
Oscillation YES (Gear Box) YES (Gear Box)
Temperature Below 70°C Below 70°C
Propose Load Aluminum Blade Aluminum Blade
