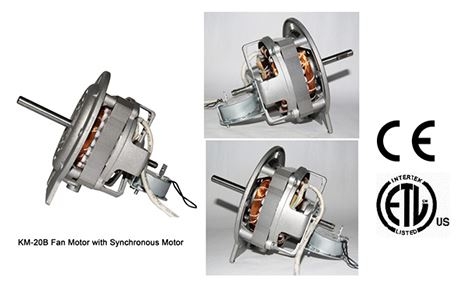

| Item No. | KM-20B
(for Aluminum Blades) | KM-20B
(for Aluminum Blades) |
|---|
| Voltage |
110V / 120V |
220V / 240V |
|---|
| Frequency |
60Hz |
50Hz |
|---|
| Power |
88W / 98W |
143W / 168W |
|---|
| Pole |
4 |
4 |
|---|
| Speed Select |
3 |
3 |
|---|
| Steel Sheet Stack |
110 x 65 mm |
110 x 65 mm |
|---|
| Stacked |
18 mm |
18 mm |
|---|
| R.P.M (NO Load) |
1720 |
1500 |
|---|
| Insulation class |
B |
B |
|---|
| Capacitor |
3UF/250V |
2UF/400V |
|---|
| Oscillation |
YES |
YES |
|---|
| Temperature |
Below 70°C |
Below 70°C |
|---|
| Propose Load |
Aluminum Blade |
Aluminum Blade |
|---|
*Regarding the motor specification is normal type, but we can in according to your requirement to change and revise our motor specification
