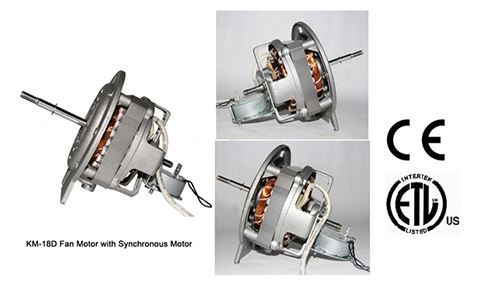

KM-18D Fan Motor with Synchronous Motor
Product Description
Item No.KM-18D
(for Special Blades)
KM-18D
(for Special Blades)
Voltage 110V / 120V 220V / 240V
Frequency 60Hz 50Hz
Power 148W / 163W 108W / 123W
Pole 4 4
Speed Select 3 3
Steel Sheet Stack 110 x 65 mm 110 x 65 mm
Stacked 18 mm 18 mm
R.P.M (NO Load) 1720 1500
Insulation class B B
Capacitor 5UF/250V 2UF/400V
Oscillation YES YES
Temperature Below 70°C Below 70°C
Propose Load Special Blade Special Blade

*Regarding the motor specification is normal type, but we can in according to your requirement to change and revise our motor specification
