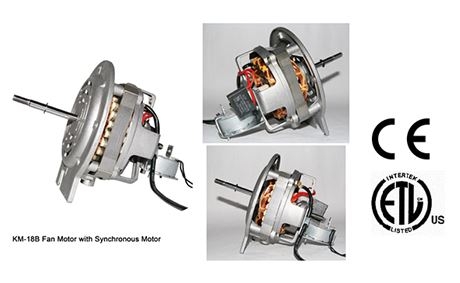

KM-18B Fan Motor with Synchronous Motor
Product Description
Item No.KM-18B
(for PLASTIC BLADES)
KM-18B
(for PLASTIC BLADES)
Voltage 110V / 120V 220V / 240V
Frequency 60Hz 50Hz
Power 93W / 103W 93W / 103W
Pole 4 4
Speed Select 3 3
Steel Sheet Stack 110 x 65 mm 110 x 65 mm
Stacked 16 mm 16 mm
R.P.M (NO Load) 1720 1500
Insulation class B B
Capacitor 3UF/250V 2UF/400V
Oscillation YES YES
Temperature Below 70°C Below 70°C
Propose Load Plastic Blade AS or ABS Plastic Blade AS or ABS

*Regarding the motor specification is normal type, but we can in according to your requirement to change and revise our motor specification
