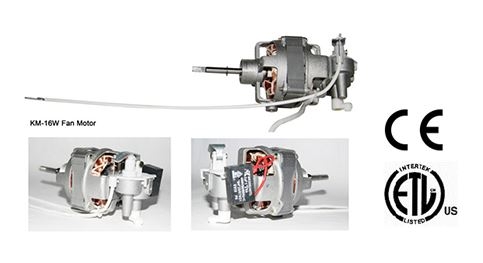

KM-16W Wall Fan Motor

KM-16W Wall Fan Motor
KM-16W Wall Fan Motor
Product Description
Item No.KM-16W (16mm)KM-16W (20mm)KM-16W
(25mm)
Voltage 110V 220V 110V 220V 220V
Cycle 60Hz 50Hz 60Hz 50Hz 50Hz
Power 50W 50W 60W 60W 65W
Pole 4 4 4 4 4
Speed Select 3 3 3 3 3
Thickness of
silicon sheet		 75 x 75 mm 75 x 75 mm 75 x 75 mm 75 x 75 mm 75 x 75 mm
Stacked 16mm 16mm 20mm 20mm 25mm
R.P.M.
(No Load)		 1720 1500 1720 1500 1500
Insulation B B B B B
Capacitor 3UF/250V 2UF/400V 3UF/250V 2UF/400V 2UF/400V
Oscillation Yes
(Gear Box)		 Yes
(Gear Box)		 Yes
(Gear Box)		 Yes
(Gear Box)		 Yes
(Gear Box)
Temperature Below 70 degrees
centigrade		 Below 70 degrees
centigrade		 Below 70 degrees
centigrade		 Below 70 degrees
centigrade		 Below 70 degrees
centigrade

*Regarding the motor specification is normal type, but we can in according to your requirement to change and revise our motor specification
