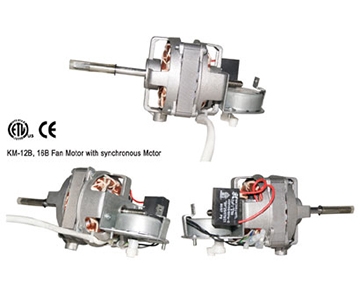

KM-12B, KM-16B with Synchronous Motor

KM-12B, KM-16B with Synchronous Motor
KM-12B, KM-16B with Synchronous Motor
Product Description
Item No.KM-12BKM-12BKM-16B (16mm)KM-16B (20mm)KM-16B
(25mm)
Voltage 110V 220V 110V 220V 110V 220V 220V
Cycle 60Hz 50Hz 60Hz 50Hz 60Hz 50Hz 50Hz
Power 43W 43W 53W 53W 63W 63W 68W
Pole 4 4 4 4 4 4 4
Speed Select 3 3 3 3 3 3 3
Thickness of silicon sheet 75 x 75mm 75 x 75mm 75 x 75mm 75 x 75mm 75 x 75mm 75 x 75mm 75 x 75mm
Stacked 12mm 14mm 16mm 16mm 20mm 20mm 25mm
R.P.M.
(No Load)		 1700 1500 1720 1500 1720 1500 1500
Insulation B B B B B B B
Capacitor 2UF/250V 1.5UF/350V 3UF/250V 2UF/400V 3UF/250V 2UF/400V 2UF/400V
Oscillation Yes Yes Yes Yes Yes Yes Yes
Temperature Below 70 degrees centigrade Below 70 degrees centigrade Below 70 degrees centigrade Below 70 degrees centigrade Below 70 degrees centigrade Below 70 degrees centigrade Below 70 degrees centigrade

*Regarding the motor specification is normal type, but we can in according to your requirement to change and revise our motor specification
